In modern building hardware systems, door locks not only provide basic protection but are also closely related to key factors such as structural stability, security level, and service life. Among the many types of mechanical door locks, vertical door locks, as a unique and high-performance lock type, are increasingly being widely used in high-end residential, commercial, and industrial settings.
So, what are the advantages of vertical door locks? Why are more and more engineering projects choosing vertical door locks?
This article will systematically analyze the structural principles, functional characteristics, and practical advantages of vertical door locks to help readers deeply understand the significant value of this mechanical door lock system.

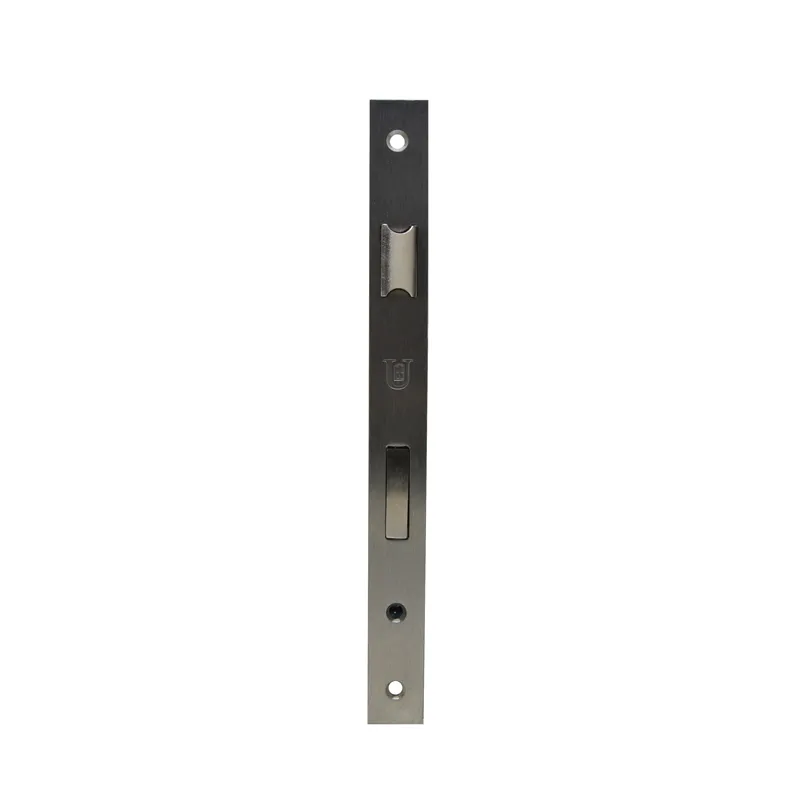

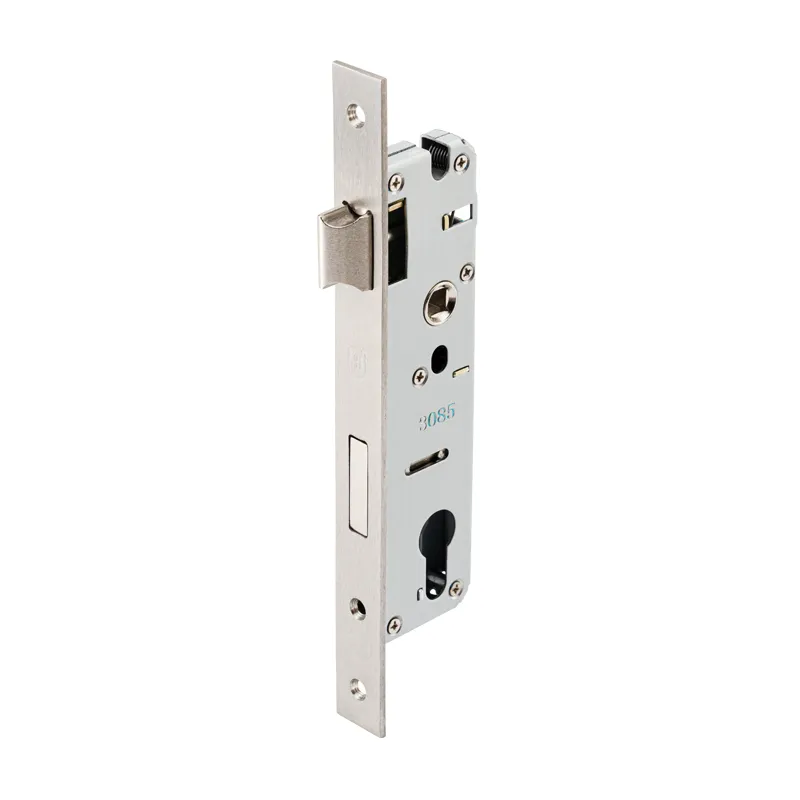

What is a Vertical Door Lock?
A vertical door lock is a mechanical door lock system where the bolt or locking point engages in a coordinated locking mechanism along the vertical direction (usually up and down) of the door leaf. Unlike traditional single-point locks, vertical door locks typically employ a multi-point linkage structure, using a single transmission mechanism to achieve simultaneous locking of the upper, middle, and lower parts of the door leaf.
This design gives vertical door locks not only superior locking strength but also higher performance in terms of anti-pry and anti-deformation.
Core Structural Features of Vertical Door Locks
Before analyzing the advantages of vertical door locks, it's necessary to understand their basic structural features:
1. Multi-point locking system: Typically includes an upper locking point, a middle locking point, and a lower locking point.
2. Vertical transmission mechanism: Achieved through internal linkages or transmission bars.
3. Reinforced bolt design: The bolt is usually longer and stronger.
4. Lock body and door frame coordinated structure: Enhances overall stability.
These structural designs make vertical door locks significantly superior to traditional mechanical door locks in performance.
What are the advantages of vertical door locks?
1. Higher security performance
One of the most significant advantages of vertical door locks is their superior security performance. Compared to traditional single-point locks, vertical door locks lock the door simultaneously through multiple locking points, making it difficult for external forces to concentrate and damage a single weak point.
• Distributed force at multiple points enhances overall pry resistance.
• Widely distributed locking points increase the difficulty of unauthorized entry.
• Effectively prevents the door from being pried open or forced open.
Therefore, vertical door locks are the preferred choice in locations with high security requirements, such as high-end residences or commercial spaces.
2. Why do vertical door locks improve door stability?
A vertical door lock is not just a lock, but also a structural reinforcement system.
Because vertical door locks have locking points at both the top and bottom of the door, when the door is closed and locked, it is equivalent to firmly fixing the door leaf to multiple positions on the door frame.
The effects of this structure include:
• Preventing door swaying
• Reducing door sagging caused by long-term use
• Improving the overall fit precision between the door frame and the door leaf
Especially in the application of large or heavy doors, vertical door locks can significantly improve overall stability.
3. Excellent anti-deformation capability
During long-term use, the door may deform due to changes in temperature, humidity, or external forces. Traditional locks, because they only lock in the middle, are prone to causing warping of the upper and lower parts of the door.
Vertical door locks, however, effectively limit door deformation by simultaneously fixing the upper and lower locking points:
• Simultaneous locking from top to bottom reduces torsional space
• Maintains long-term door flatness
• Extends door lifespan
This is one of the important reasons why vertical door locks are widely used in engineering door systems.
4. Do vertical door locks help improve sealing performance?
The answer is yes.
Because vertical door locks create a multi-point pressure effect on the door when locked, the fit between the door leaf and the door frame is tighter, resulting in better sealing performance:
• Reduces air infiltration
• Improves sound insulation
• Enhances dust and wind resistance
For places requiring a good sealing environment, such as office spaces or high-end residences, vertical door locks have a significant advantage.
5. Longer Service Life
Vertical door locks typically employ higher-strength materials and more complex mechanical structures in their design, resulting in superior durability:
• Multi-point stress distribution reduces single-point wear
• Robust structure reduces failure rate
• Maintains good performance even after long-term use
Compared to ordinary door locks, vertical door locks have lower maintenance costs over long-term use, offering better overall cost-effectiveness.
6. Are Vertical Door Locks Really More Pry-Resistant?
From a mechanical structure perspective, vertical door locks do indeed possess stronger pry-resistance.
The reasons are:
• Prying requires simultaneously breaking multiple locking points
• Locking points are distributed at both ends, making it difficult to concentrate force
• The interconnected structural design increases the complexity of breaking the lock
This makes vertical door locks more resistant to external attacks.
7. More Stable and Smoother Operation
Despite the complex structure of vertical door locks, well-designed vertical door locks maintain smooth operation:
• Optimized linkage mechanism for consistent opening and closing actions
• Stable feel with no noticeable jamming
• Clear locking feedback
Especially in high-quality door lock systems, vertical door locks not only offer security but also prioritize user experience.
8. Suitable for Various Door Structures
Vertical door locks are highly adaptable and can be widely used in various door types:
• Wooden doors
• Metal doors
• Security doors
• Engineering doors
Their structure can be customized according to door size and requirements to meet the needs of different application scenarios.
9. Are Vertical Door Locks Suitable for High-End Buildings?
Vertical door locks are widely used in high-end buildings, mainly due to:
• High security requirements
• Larger door sizes
• High stability requirements
In these scenarios, vertical door locks have almost become a standard configuration.
Comparison of Vertical Door Locks and Traditional Door Locks
To more intuitively understand the advantages of vertical door locks, a comparison can be made in the following aspects:
Comparison Dimensions | Vertical door lock | Traditional single-point door lock |
| Number of Locking Points | Multi-point (top, bottom + middle) | Single-point |
| Security | High | Medium |
| Stability | Strong | Average |
| Deformation Resistance | Excellent | Weak |
| Sealing Performance | Good | Average |
| Service Life | Long | Short |
The comparison shows that vertical door locks outperform traditional door locks in several key performance indicators.
Mechanical Advantages of Vertical Door Locks
In summary, the advantages of vertical door locks are mainly reflected in the following aspects:
1. Significantly improved security performance
2. Stronger door stability
3. Excellent anti-deformation capability
4. Better sealing performance
5. Longer lifespan
6. Outstanding anti-pry capability
7. Adaptable to various door structures
These advantages make vertical door locks occupy an important position in modern mechanical door lock systems.
